300W ARC Series Dependable And Easy-to- Thermoelectric Liquid Cooler

Name: 300W ARC Series Dependable And Easyto Thermoelectric Liquid Cooler
Brand: Adcol
Price: 1 USD

Brand Name : Adcol

Model Number : ARC300

Certification : ISO9001 CE

Place of Origin : China

MOQ : 5 Sets

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 100Pcs/Month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Product Name : Thermoelectric Liquid Cooler

Heating Capacity，Watt : 300-600

Current, Amperes, 115VAC (230VAC) : 3.9(2.0)

Input power, Watts : 450

Fluid capacity, mL : 350

Weight, kg : 16

Maximum flow rate, LPM : 6

Input voltage, VAC : 100-240

Humidity，RH% : ≤85% RH

Frequency, Hz : 50/60

Compliance : UL61010-1/IEC61010-1 EN 61326-1:2006 EN 61000-3-3:2008

Controller accuracy, °C : ± 0.10

Temp. stability, ℃ : ± 0.05

Contact Now

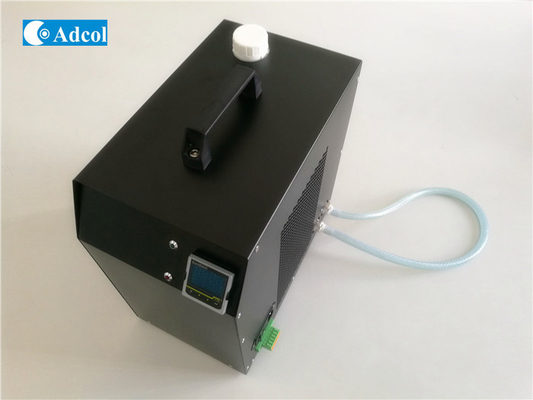

300W ARC Series Dependable And Easy-to- Thermoelectric Liquid Cooler

The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by controlling the temperature of a coolant in a liquid circuit.
The coolant is re-circulated using a pump with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density heat sinks equipped with brand name fans.
The thermoelectric modules are custom designed to achieve long life operation. The unit is regulated with an easy to use digital temperature controller and is housed inside an aesthetic sheet metal casing.
Also the chiller can providethe heating function to keep the circle system at some Constant temperature point in the range.

Standard Features

1. Fast cooling and heating

2. Easy to operate

3. Environmentally friendly and refrigerant-free

4. Quiet

5. Programmable Digital Temperature Controller/ Auto-tune of PID control terms

6. System Error Monitor and alarm

7. Fluid inlet and outlet quick disconnect

8. High reliability

300W ARC Series Dependable And Easy-to- Thermoelectric Liquid Cooler

Cooling Capacity

Delta T =T ambient – T liquid – Degree C;

Cooling Capacity Qc – W

Liquid: Pure Water with current rate of Alcohol

ST: Standard unit, cooling only

Heating Capacity

Delta T’=T liquid – T ambient – Degree C;

Heating Capacity Qh - W

Liquid: Pure Water

HT: with Heater by reverse TE module Connection

Dimension(mm)
